Description of Optical Circulator

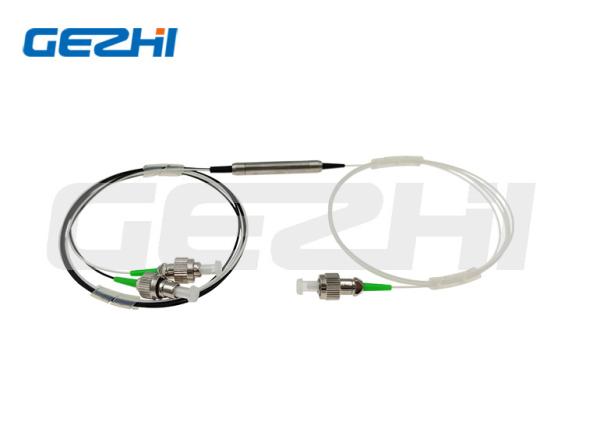

| 3 port Single Mode Fiber Optical Circulator With LC Connector 3 port Polarization Insensitive 1310nm or 1550nm Optical Circulator GEZHI Photonics’ Three-port 1x2 Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction. |
Features & Applications of Optical Circulator
Features:
Compact in-line Package
Low Insertion Loss
Epoxy-free on optical path
Low PDL
High stability and Reliability
Applications:
Optical Amplifier
Metro Area Network
Wavelength Add/Drop
Dispersion Compensation
Bi-Direcation Communication
Technical Paremeter
Specifications of Optical Circulator
| Parameter | P Grade | | Configuration | Port 1 to Port 2 to Port 3 | | Operation Wavelength (nm) | 1310±30 or 1550±30 or 1585±30 | | Isolation (dB) | Typical | 0.6 | | Maximum | 0.8 | | Typical Isolation (dB) | ≥50 | | Minimum Isolation (dB) | ≥40 | | Cross Talk (dB) | ≥50 | | Polarization Dependent Loss (dB) | <0.15 | | Polarization Mode Dispersion | <0.1 | | Return Loss(dB) | ≥50 | | Power Handling (mW) | 500 | | Opterating Temperature (℃) | -10~+75 | | Package dimension (mm) | Φ5.5xL50 or Φ5.5xL63 | | |
Specifications may change without notice.
Above specification are for device without connector.
Odering Information
| PICIR | Wavelength | Package | Fiber Diameter | Fiber Length | Connector | | 3=3Port 4=4Port S=Specity | 13=1310nm 55=1550nm 58=1580nm C+L=C=L band S=Specify | S1=5.5x50mm S2=5.5x68mm A9=90x20x10mm S=Specify | 25=250um 09=900um 20=2.0mm 30=3.0mm S=Specify | 05=0.5m 10=1.0m 15=1.5m S=Specify | FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC S=Specify | | |
